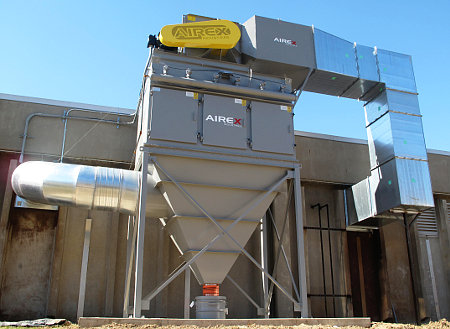

  1. Welding Lab #1

  Airex Model DCCH-24-50 (self-cleaning) Cartridge-type Dust Collector collecting weld smoke from (25) Henlex (source-capture) arms in the welding lab at a vocational school.
•

  2. Welding Lab #2

  A Henlex (source-capture) arm in a welding booth at a vocational school.
•

  3. Welding Lab #3

  Typical ducting with Henlex arms mounted in welding booths at a vocational school.
•

  4. Collecting Welding Smoke #1

  Two (2) Airex Model DCCH-16-30 (self-cleaning) Cartridge-type Dust Collectors collecting welding smoke from (32) Henlex (source-capture) arms at a vocational school.
•

  5. Collecting Welding Smoke #2

  Henlex (source-capture) arm collecting welding smoke from a vocational school.
•

  6. Collecting Welding Smoke #3

  Typical ducting of (32) Henlex arms collecting welding smoke from a vocational school.
•

  7. Dust Collector and Arms for Welding #1

  Airex Model DCCH-12-30 (self-cleaning) Cartridge-type Dust Collector collecting welding smoke from (9) Airflow Systems 7ft. (source-capturing) arms at a vocational school.
•

  8. Dust Collector and Arms for Welding #2

  Typical ducting with Airflow Systems arms mounted in welding booths at a vocational school.
•

  9. Welding Smoke Collection System #1

  Airex model DCCH24 and DCCH-12 self-cleaning cartridge weld smoke collectors ducted to (39) Airflow Systems telescopic extractor arms to collect welding smoke at a vocational school.
•

  10. Welding Smoke Collection System #2

  Typical ducting with telescopic extractor arms mounted in welding booths at a vocational school.
•

  11. Welding Smoke Collection System #3

  Typical clean-air return duct lined with sound attenuation material with low-flow exhaust grilles for low DbA reading.
•

  12. Welding Smoke Collection System #4

  Typical telescopic extractor arm mounted in welding booths at a vocational school.
•

  13. Welding Smoke Collection System #5

  Typical Airex control panel with multi-setting VFD motor controller, photohelic for on-demand filter cleaning and fused rotary disconnect. Also RTI point-of-use desiccant air dryer for -40 degree compressed air for filter cleaning of collector cartridges.
•

  14. Welding Shop Collector and Arms #1

  Airex Model DCCH-30 Dust Collector connected to (34) Airflow Systems 7ft.Telescope Arm Assemblies collecting welding smoke.
•

  15. Welding Shop Collector and Arms #2

  Ductwork running to (34) Airflow Systems 7ft. Telescopic Extractor Arm Assemblies collecting welding smoke.
•

  16. Welding Shop Collector and Arms #3

  Airflow Systems 7ft.Telescopic Arm Assembly collecting welding smoke.
•

  17. Air Cleaners With Dual Arms for Welding Smoke #1

  Airflow Systems model F-122 2000cfm media air cleaners with dual 10-foot source capture arms for collection of welding smoke.
•

  18. Air Cleaners With Dual Arms for Welding Smoke #2

  Airflow Systems model F-122 2000cfm media air cleaners with dual 10-foot source capture arms for collection of welding smoke.
•

  19. Control System for Safe Wood Dust Collection

  Typical dust collector and spark detection and extinguishment controls.
•

  20. Booster Pump for Wood Dust Collection Safety System

  Typical booster pump arrangement for spark detection and extinguishment system.
•

  21. Spray Head Assembly for Wood Dust Collection Safety System

  Typical spray head assembly for spark detection and extinguishment system.
•

  22. Safety System for Wood Dust Collection

  Typical spark detection and extinguishment system installation.
•

  23. Duct System for Safe Wood Dust Collection

  Typical duct arrangement for spark detection and extinguishment system.
•

  24. Dust Collector for Wood Shop

  Sternvent model DKPD48010-2 Vibraclean dust collector collecting wood dust.
•

  25. Wood Dust Collector With Safety Features

  Vibraclean dust collector with abort gate and explosion vent collecting wood dust.
•

  26. Elevated Wood Dust Collector With Airlock

  Sternvent model DKPL48015 Vibraclean dust collector with elevated support stand and airlock collecting wood dust.
•

  27. Dust Collector for Middle School Wood Shop

  Sternvent model DKPD48010-2 Vibraclean dust collector collecting wood dust.
•

  28. Wood Dust Collector With After-Filters

  Vibraclean dust collector with built-in after-filters collecting wood dust.
•

  29. Dust Collector for High School Wood Shop

  Sternvent Model DKPD54015-2 Vibraclean dust collector collecting wood dust.
•

  30. Welding Shop System #1

  Low volume - medium pressure weld smoke collection blower, muffler and particle arrestor for a vocational school.
•

  31. Welding Shop System #2

  Duct system with 3" x 5' heavy duty source capture arms collecting welding smoke in a vocational school.
•

  32. Welding Shop System #3

  DSP Monoxivent 7ft. Telescopic Extractor Arm Assembly collecting welding smoke.
•

  33. Weld Shop System #1

  Low volume - medium pressure weld smoke collection blower for a vocational school.
•

  34. Weld Shop System #2

  Duct system with 3" x 5' heavy duty source capture arms collecting welding smoke in a vocational school.
•

  35. Weld Shop System #3

  3" x 5' heavy duty source capture arm for collecting welding smoke in a vocational school.
•

  36. Vocational School Dust Collectors

  (3) Airex dust collectors installed in a vocational school.
•

  37. School Welding Shop #1

  Airex model DCCH-16 cartridge weld smoke collectors collecting welding smoke from (18) source capture arms in a vocational school.
•

  38. School Welding Shop #2

  Duct system from (18) heavy duty source capture arms collecting welding smoke in a vocational school.
•

  39. School Welding Shop #3

  Henlex 6" x 6 ft heavy duty source capture arm collecting welding smoke in a vocational school.
•

  40. Masonry Shop #1

  Airex model DCCH-9-SB cartridge dust collector collecting masonry dust from mixer and reclaim area at vocational school.
•

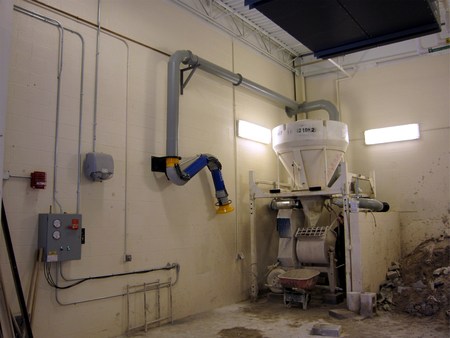

  41. Masonry Shop #2

  Duct system with source capture arm for masonry dust collector at vocational school.
•

  42. Masonry Shop #3

  Slotted hood for masonry dust collector at vocational school.
•

  43. School Welding Shop #1

  (6) FARR model GS-16 cartridge weld smoke collectors collecting welding smoke from (95) source capture arms in a trade school.
•

  44. Cabinetry Shop Baghouse

  Airex model 108-10-TR6 12,000 cfm baghouse dust collector collecting wood dust from cabinetry shop in a vocational school.
•

  45. Masonry Dust Collection #1

  Airex model DCCH-9-SB cartridge dust collector collecting masonry dust from mixer at trade school.
•

  46. Masonry Dust Collection #2

  Duct system for masonry dust collector at trade school.
•

  47. Central Collector & Extractor Arms for Welding #1

  FARR model GS 12 Square Dust collector 25 hp with ductwork to (14) Airflow Systems model 6TS7 telescopic source capture arms collecting welding smoke.
•

  48. Central Collector & Extractor Arms for Welding #2

  Airflow Systems model 6TS7 telescopic source capture arm to collect welding smoke.
•

  49. Vocational School Body Shop #1

  Henlex Model HV 615H 15 hp 300 cfm High Vacuum Turbine and a Model CDP20S Self Cleaning High Vacuum Cartridge Dust Collector collecting body shop dust at a Vocational School.
•

  50. Vocational School Body Shop #2

  A 5" Dual Action Sander connected to a Henlex High Vacuum Dust Collection System collecting auto body dust in a Vocational School.
•

  51. Vocational School Wood Shop #1

  Sternvent model DKPL 48010 4070 cfm and a Sternvent Model DKPL 36007 2385 cfm dust collectors at a Vocational School collecting wood dust.
•

  52. Vocational School Wood Shop #2

  Sternvent model DKPL 36007 2385 cfm wood dust collector. Includes elevated support stand with rotary airlock for disposal of collected dust into a self dumping hopper.
•

  53. Vocational School Welding Shop #1

  Airflow systems model DCH2-H10 dust collector connected to an Airflow systems model DT-23 downdraft table to collect cutting smoke and dust in a vocational school.
•

  54. Vocational School Welding Shop #2

  Airflow Systems model DT-23 downdraft table used to collect cutting smoke and dust in a vocational school.
•

  55. Downdraft Table for Welding #1

  Airflow Systems Model DT - 23 downdraft table is connected to an Airflow Systems Model DCH - 2 Dust Collector to collect welding smoke at a training school.
•

  56. Downdraft Table for Welding #2

  Airflow Systems Model DT - 23 downdraft table is connected to an Airflow Systems Model DCH - 2 Dust Collector to collect smoke from a hand held plasma cutting torch.
•

  57. Downdraft Table for Welding #3

  A close up an operator using a hand held plasma cutting torch on an Airflow Systems Model DT - 23 downdraft table.
•

  58. Welding Shop #1

  Filter-1 model PFV32-50 Dust Collector connected to (28) DSP-Monoxivent 7ft telescopic arm assemblies collecting welding smoke
•

  59. Welding Shop #2

  Ductwork from dust collector to arm assemblies in welding shop
•

  60. Welding Shop #3

  DSP-Monoxivent 7ft telescopic exhaust arm assembly collecting welding smoke.
•

  61. Weld Shop Extractor Arm

  Airflow Systems telescopic welding arm collecting welding smoke. This photo illustrates typical results for our central weld smoke collection systems.
•

  62. Weld Shop Ducting

  Ducting from Airflow Systems wall mounted telescopic source capture welding arms carrying dirty air to central dust collector. Also illustrated is the clean air / return duct from central dust collector returning filtered air back into the classroom.
•

  63. Weld Shop Central Collector #1

  Filter-1 model PFV 24-30 Dust Collector located outside the building connected with ductwork to ( 16 ) Airflow Systems 7 ft Telescopic arm assemblies collecting welding smoke. Dust Collector has future capacity for ( 4 ) additional welding arms.
•

  64. Weld Shop Central Collector #2

  Filter-1 model PFV 24-30 Dust Collector collecting welding smoke. Features include factory wired and mounted control box with motor starter, photohelic and heat sensor, blower discharge silencer and return air damper, reverse pulse air storage tank and 55 gallon dust storage drums.
•

  65. Weld Shop Arrangement

  Typical equipment arrangement for welding shop. Includes Airflow Systems model DT-3000 downdraft welding and grinding table and model F-70-R free hanging ambient air cleaners.
•

  66. Weld Shop - Downdraft Table

  Airflow Systems Model DT-3000 Downdraft Table collecting brazing and welding smoke in a school weld shop.
•

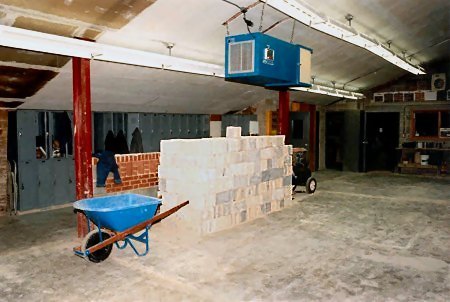

  67. Masonry Shop

  Airflow System Model F70-R Air Cleaner collecting dust from the Masonry Shop.
•

  68. Auto Repair and Refinishing Room

  Two (2) Airflow Model F-70-R Air Cleaners collecting dust.
•

  69. Cosmetology Room

  Airflow Model 1000-AD Air Cleaners collecting odors and dust.
•

  70. Carpentry Shop System

  Carpentry shop dust collection system connected to several machines using Sternvent Model DKLD-360-07 Dust Collector (in backgound)
•

  71. Carpentry Shop #1 - External Collector

  Sternvent Model DKLH-480-15 Dust Collector collecting wood dust from carpentry shop.
•

  72. Carpentry Shop #2 - Ductwork to Machines

  Ductwork within school carpentry shop connected to several woodworking machines.
•

  73. Cabinet Shop

  Sternvent Model DKLD-244-05 Dust Collector collecting wood dust from cabinet shop.
•

  74. Wood Shop

  Sternvent Model CYA-2407 Cyclone Dust Collector with Afterfilter collecting wood dust from wood shop.
•

  75. Wood Shop #2

  Sternvent Model CYA-3015 Cyclone Dust Collector with Afterfilter collecting wood dust from wood shop.
•

  76. Welding Shop System #1

  Filter 1 Model PFV-16-25 Dust Collector located outside the building connected with ductwork to (16) DSP Monoxivent 7ft.Telescopic Arm Assemblies collecting welding smoke.
•

  77. Welding Shop System #2

  Ductwork running to (16) DSP Monoxivent 7ft.Telescopic Extractor Arm Assemblies collecting welding smoke.
•

  78. Welding Shop System #3

  Control panel for low volume-medium pressure weld smoke collection exhaust system.
•

  79. Welding Shop System #4

  Filter 1 Model PFV-16-25 Dust Collector collecting welding smoke from (16) DSP Monoxivent 7ft.Telescopic Arm Assemblies.
